Proxy

A reverse proxy and HTTPS termination service built on OpenResty/nginx, with a management API and web GUI. It puts any of your apps behind single sign-on (OIDC) and can also look users up directly in LDAP — so the same people who log in to your SSO are the people allowed to reach your proxied apps.

It handles the parts that are tedious to do by hand: automatic HTTPS certificates from Let's Encrypt (including wildcards via DNS-01), routing by hostname with wildcard matching, and per-host access control tied to your identity provider. You manage hosts, DNS providers, and permissions from a web UI or a REST API; the proxy serves them over TLS with auto-renewing certs and no downtime on changes.

Running it together with the theta42 SSO Manager? theta-env composes the two with one setup.sh — it generates the OIDC + LDAP wiring from a single setup.env so the proxy and the SSO find each other without manual config.

Documentation: https://theta42.github.io/proxy/ (CHANGELOG.md for what changed in each release) — also readable from the running app itself at /docs, no internet access required.

Screenshots

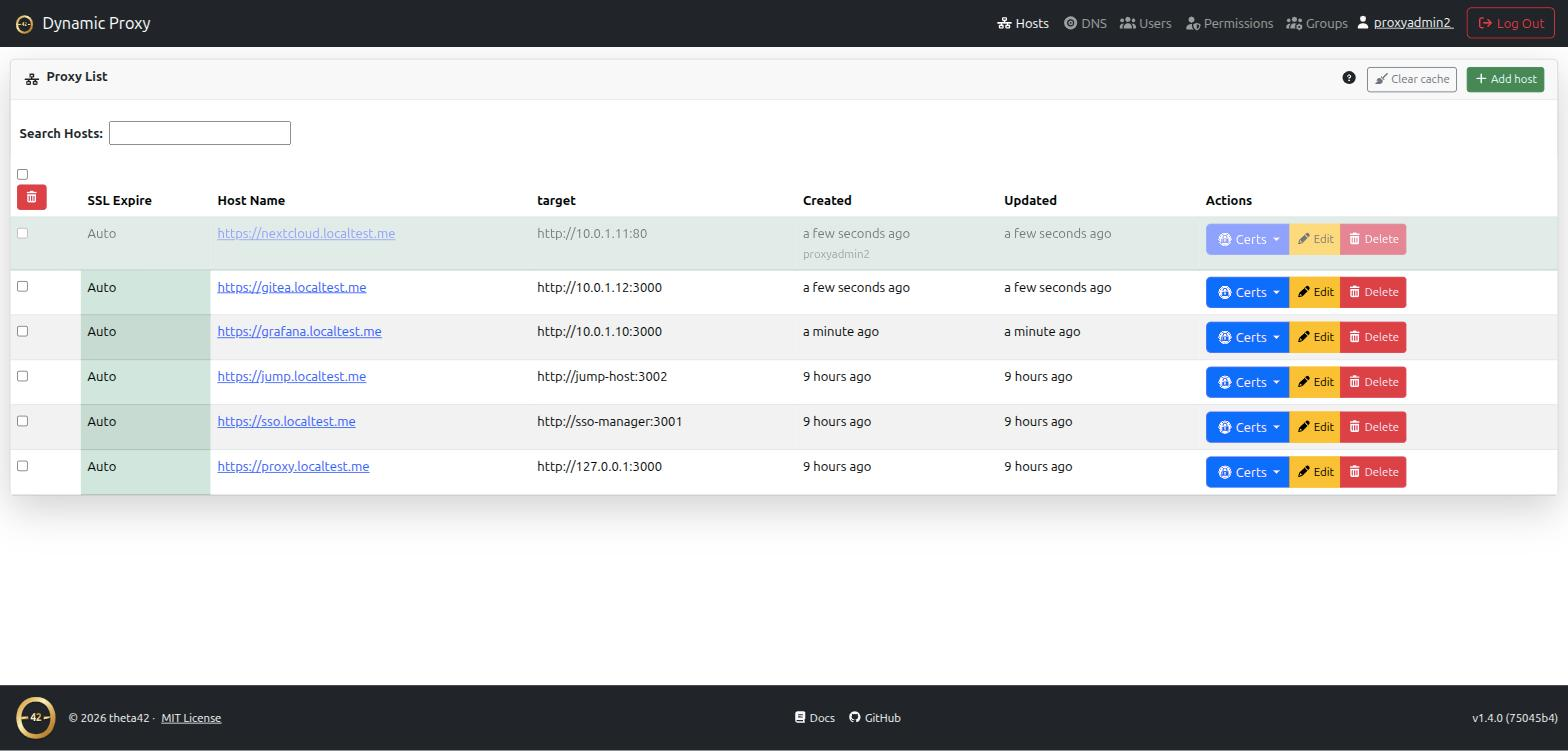

Hosts	Authentication

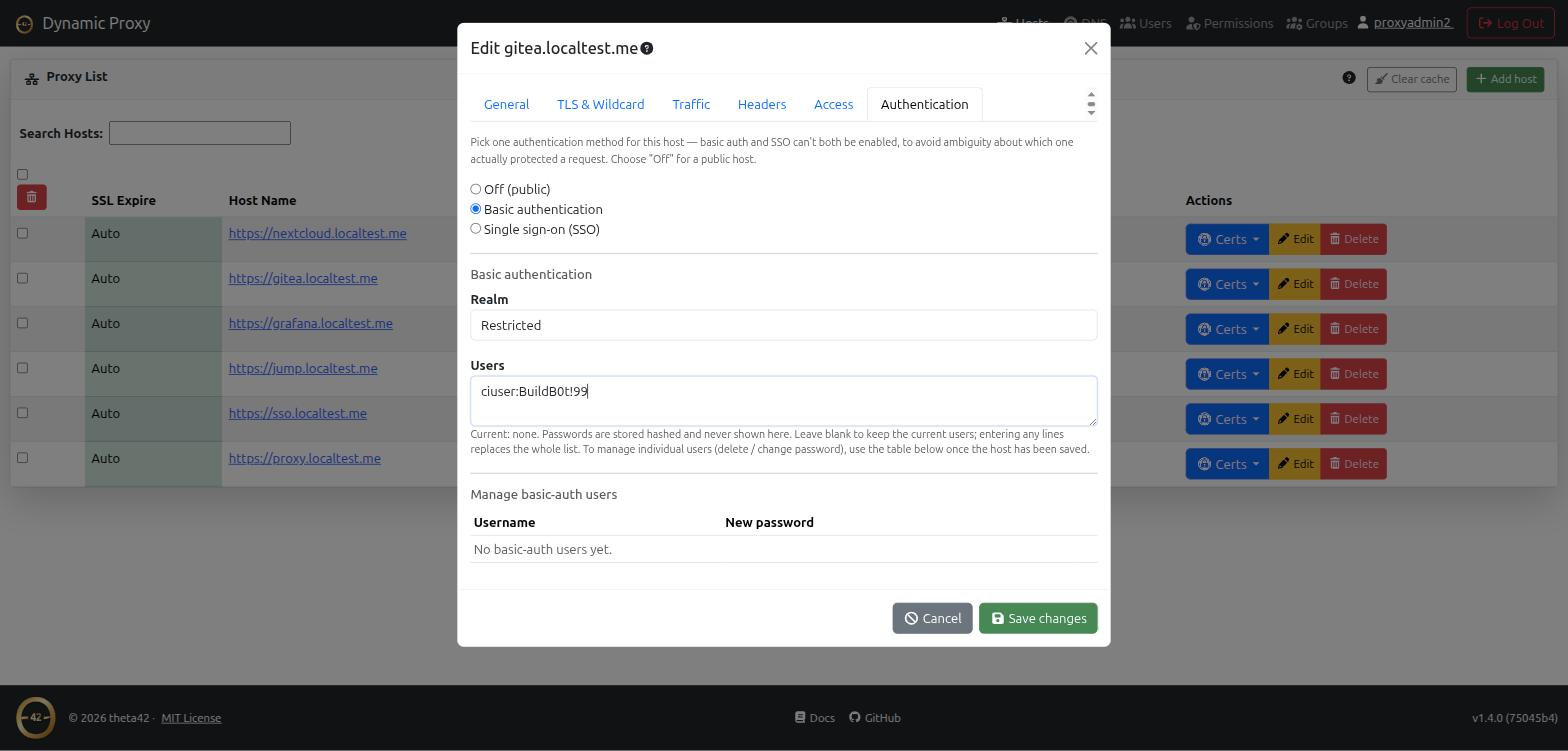

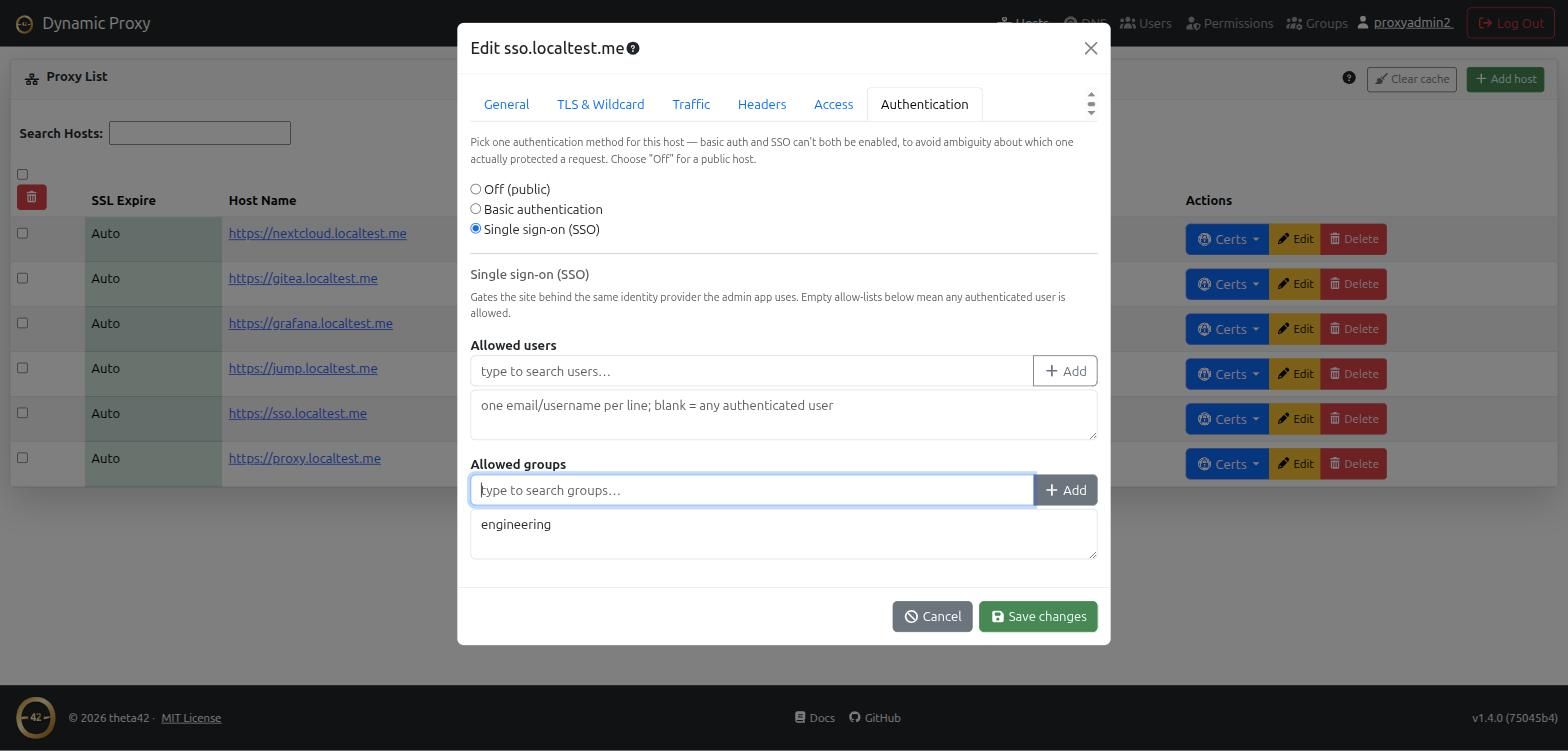

Basic auth and SSO are mutually exclusive per host, with per-user password management once basic auth is enabled:

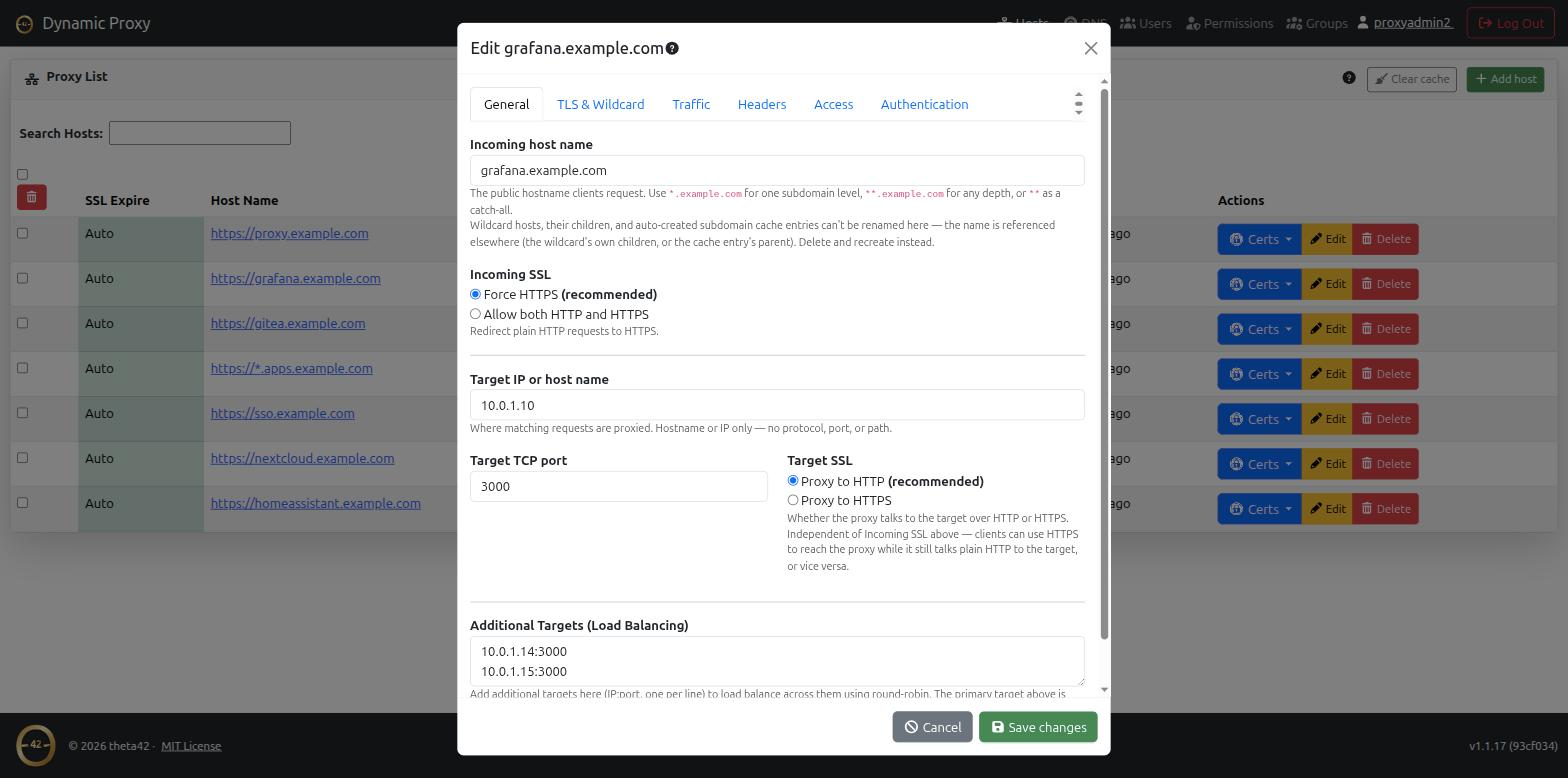

Multiple backend targets per host, load balanced round-robin:

Why this over the alternatives

Nginx Proxy Manager, Traefik, and Caddy are all good reverse proxies with auto-HTTPS. This one is built around identity: it is both an OIDC client of an SSO provider (for browser login) and a direct LDAP client (for user lookups and per-host access control), so access decisions come from your real user directory, not a static allow-list or a separate auth proxy bolted on top. The trade-off is that it expects an OIDC/LDAP identity source to point at — it is not a standalone auth server. Pair it with the theta42 SSO Manager (bundled OpenLDAP + OIDC) for a self-hosted SSO + proxy stack, or point it at any OIDC provider + LDAP directory you already run.

Features

• Automated HTTPS/SSL certificate management via Let's Encrypt
• Support for HTTP-01 (auto-ssl) and DNS-01 (wildcard) ACME challenges
• Multiple DNS provider integrations (Cloudflare, DigitalOcean, PorkBun, DuckDNS — DuckDNS is free)
• Wildcard SSL certificate support with automatic renewal
• Dynamic host routing with wildcard domain matching (*, **)
• Multi-target load balancing — configure multiple backend targets per host with built-in round-robin load balancing
• Web-based management interface
• RESTful API for automation
• OIDC login — the proxy is an OpenID Connect client of an external SSO (e.g. theta42/sso-manager-node)
• Direct LDAP lookups, independent of the OIDC flow
• Role-based access control (RBAC) — global admins, local groups, and per-domain permissions (viewer/manager) via /api/permission and /api/group
• Self-service API tokens (PATs) for scripting/CI without a browser session
• Unix socket-based host lookup for high-performance routing

Requirements

• Node.js 18+ (tested with 18.x, 20.x, 22.x)
• OpenResty (nginx with Lua support)
• Redis
• Modern Linux distribution (tested on Ubuntu 20.04+, Debian 11+)
• Inbound internet access for Let's Encrypt validation
• Root access (required for user management features)

Quick start

Three ways to run it, in order of how much it sets up for you:

1. As part of the unified stack (recommended)

theta-env composes this proxy with the theta42 SSO Manager and generates all the wiring (OIDC endpoints, LDAP bind, hostnames) from a single setup.env. You enter your domain once and the proxy is registered as an OIDC client of the SSO automatically:

git clone --recursive https://github.com/theta42/theta-env.git
cd theta-env
cp setup.env.example setup.env   # set CFG_DOMAIN to your domain
./setup.sh                       # generates ./config/, builds + bootstraps + starts both

See the theta-env README for the full first-run flow, DNS/port requirements, and backups.

2. Standalone, in Docker

The all-in-one image bundles OpenResty, the Node management app, and Redis. The OIDC/LDAP/auth config is read from a bind-mounted ./config/proxy-secrets.js (the OAuth client id/secret are filled in by your SSO's bootstrap, or you set them yourself):

git clone https://github.com/theta42/proxy.git
cd proxy
mkdir -p config && chmod 700 config
cp secrets.js.example config/proxy-secrets.js
$EDITOR config/proxy-secrets.js   # point oidc/ldap at your SSO + directory
docker compose up -d --build

The management UI comes up at http://127.0.0.1:3000 (bound to localhost; the OpenResty front proxies it under TLS on 443). See DEPLOYMENT.md and secrets.js.example for the full config shape.

3. Bare metal (Debian/Ubuntu)

An automated installer installs Node.js, OpenResty, Redis, the Lua modules, and the app, then symlinks the nginx config and starts a systemd service:

wget -O - https://raw.githubusercontent.com/theta42/proxy/master/ops/install.sh | sudo bash

This installer will:

• Install Node.js 22.x
• Install OpenResty and required dependencies
• Install and configure Redis
• Set up SSL fallback certificates
• Install Lua dependencies (lua-resty-auto-ssl, luasocket)
• Clone/update the proxy application at /opt/theta42/proxy
• Seed /etc/proxy/secrets.js on first run (edit it, then re-run or systemctl restart proxy)
• Configure systemd service
• Start the proxy service

It's idempotent and safe to re-run — re-running it updates the app in place and prints the version you're updating from and to (e.g. Updated v1.1.13 -> v1.1.14), or Already up to date if there's nothing new.

Logs (Docker)

The all-in-one image runs OpenResty in the foreground and the Node app in the background, both writing to the container's stdout/stderr. The proxy's nginx access/error logs go to files (/var/log/nginx, on the proxy-logs volume), so they do not show up in docker logs.

# App + OpenResty (stdout/stderr)
docker compose logs -f proxy
# or, by container name:
docker logs -f proxy

# nginx access / error logs (in-container files, not in docker logs)
docker compose exec proxy tail -f /var/log/nginx/access.log
docker compose exec proxy tail -f /var/log/nginx/error.log

# Recent context
docker compose logs --tail=200 --since=10m proxy

Manual Installation

For manual installation or other distributions, see the detailed steps below.

Recommended path: ops/install.sh is idempotent and safe to re-run — it symlinks the OpenResty/systemd config from the repo checkout, so updates stay in sync automatically. The manual steps below copy those same files instead of symlinking them, so they will not auto-track future changes to ops/nginx_conf/ or ops/proxy.service — you'd need to re-copy them yourself after every update. Use the manual path only if install.sh doesn't fit your distribution.

System Dependencies

Ubuntu/Debian:

apt install libpam0g-dev build-essential redis-server luarocks -y

Node.js 22.x:

curl -fsSL https://deb.nodesource.com/gpgkey/nodesource-repo.gpg.key | sudo gpg --dearmor -o /etc/apt/keyrings/nodesource.gpg
NODE_MAJOR=22
echo "deb [signed-by=/etc/apt/keyrings/nodesource.gpg] https://deb.nodesource.com/node_$NODE_MAJOR.x nodistro main" | sudo tee /etc/apt/sources.list.d/nodesource.list
apt update && apt install nodejs -y

OpenResty:

wget -O - https://openresty.org/package/pubkey.gpg | sudo gpg --dearmor -o /usr/share/keyrings/openresty.gpg
echo "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/openresty.gpg] http://openresty.org/package/ubuntu $(lsb_release -sc) main" | sudo tee /etc/apt/sources.list.d/openresty.list
apt update && apt install openresty -y

Lua Dependencies:

luarocks install lua-resty-auto-ssl
luarocks install luasocket

SSL Configuration

Create fallback SSL certificates:

mkdir -p /etc/ssl/
openssl req -new -newkey rsa:2048 -days 3650 -nodes -x509 \
  -subj '/CN=sni-support-required-for-valid-ssl' \
  -keyout /etc/ssl/resty-auto-ssl-fallback.key \
  -out /etc/ssl/resty-auto-ssl-fallback.crt

OpenResty Configuration

Configuration files are provided in ops/nginx_conf/:

• nginx.conf - Main nginx configuration
• autossl.conf - Auto-SSL configuration for Let's Encrypt HTTP-01
• proxy.conf - Proxy server configuration with host lookup
• targetinfo.lua - Lua module for host lookup via Unix socket

Copy these files to /etc/openresty/:

mkdir -p /etc/openresty/sites-enabled/
cp ops/nginx_conf/nginx.conf /etc/openresty/nginx.conf
cp ops/nginx_conf/autossl.conf /etc/openresty/autossl.conf
cp ops/nginx_conf/proxy.conf /etc/openresty/sites-enabled/000-proxy
cp ops/nginx_conf/targetinfo.lua /usr/local/openresty/lualib/targetinfo.lua

Application Setup

Clone and install:

mkdir -p /opt/theta42
cd /opt/theta42
git clone https://github.com/theta42/proxy.git
cd proxy/nodejs
npm install

Configure secrets:

mkdir -p /etc/proxy
cp ../secrets.js.example /etc/proxy/secrets.js
chmod 600 /etc/proxy/secrets.js
$EDITOR /etc/proxy/secrets.js

Create systemd service:

cp ../ops/proxy.service /etc/systemd/system/proxy.service
systemctl daemon-reload
systemctl enable proxy.service
systemctl start proxy.service

DNS Provider Configuration

For wildcard SSL certificates, configure a DNS provider via the web UI or API:

Supported providers:

• Cloudflare - Requires API token
• DigitalOcean - Requires API token
• PorkBun - Requires API key and secret API key
• DuckDNS - Free. Requires your account token and the list of subdomains you've registered at duckdns.org (e.g. myhost for myhost.duckdns.org). Good option if you don't own a domain — DuckDNS gives you one for free. Note DuckDNS only supports a single A/AAAA record and a single TXT record per domain (no arbitrary subdomains), which is enough for both dynamic DNS and DNS-01 wildcard certs but not for hosting other DNS records.

Once configured, create a wildcard host (e.g., *.example.com) and the system will automatically request and manage the DNS-01 challenge certificate.

Architecture

The system consists of three main components:

1. OpenResty/Nginx - Frontend proxy with Lua-based routing

   • Handles SSL termination via lua-resty-auto-ssl
   • Queries Node.js backend via Unix socket for host routing
   • Proxies requests to configured backend servers

2. Node.js API - Backend management and control plane

   • RESTful API for host/user/DNS management
   • Wildcard SSL certificate orchestration
   • Host lookup tree with wildcard matching
   • User authentication and authorization

3. Redis - Data store (using model-redis ORM)

   • Host configurations
   • User accounts and tokens
   • SSL certificate storage
   • Domain and DNS provider configurations

Host Lookup System

The proxy supports sophisticated domain matching:

• Exact match: example.com matches only example.com
• Single wildcard: *.example.com matches sub.example.com but not deep.sub.example.com
• Double wildcard: **.example.com matches any depth (sub.example.com, deep.sub.example.com, etc.)
• Mixed wildcards: api.*.example.com matches api.v1.example.com, api.v2.example.com, etc.

Priority: Exact match > Single wildcard > Double wildcard

Development

Running locally:

cd nodejs
npm install
npm run dev  # Runs with nodemon for auto-reload

Running tests:

npm test                  # Run all tests
npm run test:unit         # Run unit tests only
npm run test:integration  # Run integration tests only
npm run test:watch        # Watch mode for development

Tests use Node.js built-in test runner (requires Node 18+).

API Documentation

See API Documentation for complete API reference.

Contributing

Pull requests are welcome. The project uses GitHub Actions for CI/CD:

• Tests run automatically on all PRs
• All tests must pass before merging to master
• Tests run on Node.js 18.x, 20.x, and 22.x

License

MIT - See LICENSE file for details.

Project Structure

proxy/
├── nodejs/              # Node.js backend application
│   ├── bin/            # Entry point (www)
│   ├── conf/           # Configuration (base.js, environment overlays, secrets.js)
│   ├── controller/      # App-level wiring (pubsub, startup)
│   ├── migrations/      # One-off Redis data migration scripts
│   ├── models/         # Data models (Host, User, DNS providers)
│   ├── routes/         # API routes
│   ├── services/       # Background services (host lookup, scheduler)
│   ├── middleware/     # Express middleware
│   ├── utils/          # Utility functions
│   ├── public/         # Static web assets
│   ├── views/          # EJS templates
│   └── test/           # Test suite
├── ops/                # Operations and deployment
│   ├── nginx_conf/     # OpenResty configuration files
│   ├── install.sh      # Automated installer
│   └── proxy.service   # Systemd service definition
└── .github/workflows/  # CI/CD workflows
